Plastic SC To SC Optical Adapter For Singlemode Fiber Connection Blue Cap

Name: Plastic SC To SC Optical Adapter For Singlemode Fiber Connection Blue Cap
Brand: Fiberall
Price: 1 USD

Plastic SC To SC Optical Adapter For Singlemode Fiber Connection Blue Cap Manufactures

Brand Name : Fiberall

Model Number : FA-AD-SP1SPC

Certification : RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C,T/T,Western Union, MoneyGram,PayPal

Delivery Time : 2-4 days

Packaging Details : Plastic Bag or Blister Box/Carton

Product Name : Simplex Fiber Adapter

Interface Structure : SC-SC

Appearance : Color Blue

Fiber Channel : Simplex

Dust cap : Mushroom cap

Condition : Brand New

OEM Service : Available

Compatible Ferrule : 2.5mm

Contact Now

FA-AD-SP1SPC , SC Plastic Fiber Optic Adapter SX For Singlemode Fiber Connection With Blue Cap

Some fiber optic adapter is with screw hole and it is necessary when it need to be installed onto the adapter panel or plate. If you order fiber patch panel and terminal box with adapter, we always finish the installation before shipping and user can use it directly and so no need to fix the adapter with screw again. There are many different screw in the market, different size and different length, not all of them can match with the screw hole or holes in the adapter plate, some time though the size is suitable but if it is too long or too short, it still can not get ideal installation. So if you are not familiar with the screw and installation, it is better to order correct screw with the adapter together.

Applications

1, CATV, CCTV;

2, Telecommunication networks;
3. Active device and optical transceiver;
4. Gigabit Ethernet or fast Ethernet;
5. Local Area Networks(LANs);

6. Wide Area Networks (WANs).

Product Specification Of FA-AD-SP1SPC

Part number	FA-AD-SP1SPC
Adapter description	Fiber Adapter SC SM SX Blue
Fiber port	SC/PC
Housing color	Blue
Housing material	Plastic
Insertion loss	<0.2dB
Durability	<0.2dB typical, 1000 mating
Working temperature	-20ºC to +70ºC
RoHS	Compliant
OEM service	Available based on MOQ

Plastic SC To SC Optical Adapter For Singlemode Fiber Connection Blue Cap

Product Tags:

fiber optic couplers

optical fiber adapter

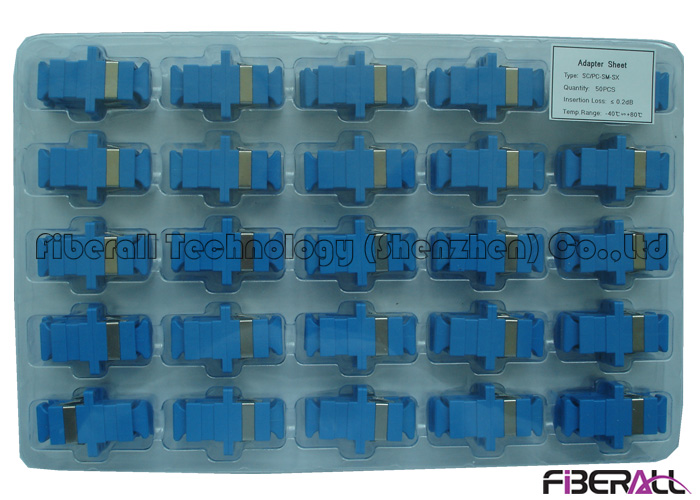

Plastic SC To SC Optical Adapter For Singlemode Fiber Connection Blue Cap Images
